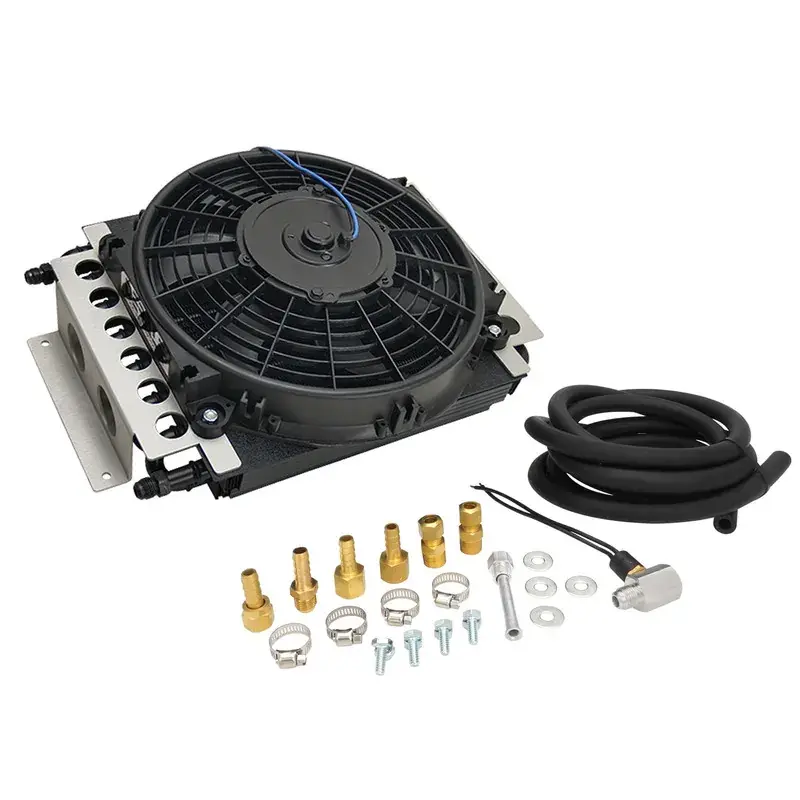

Buy Online Proflow Transmission Cooler Kit Dual Core 15.75” x 11.5” x 5.0” 10” 650CFM Fan AN6 Inlets

Description

Proflow’s Ultra Cool dual core transmission oil cooler kit will help to increase your vehicle’s transmission life expectancy by significantly lowering operating temperatures. It has a large 38 mm thick powder coated dual core with an integrated mounting bracket and AN6 male connections. It also comes complete with a 650 CFM 10” curved-blade electric fan already mounted, so all you have to do is find a spot to mount it on your car! This kit also includes rubber hose, mounting accessories and a 74°C relay switch for activating the fan.

Features:

• 16 pass tube & fin core
• 650 CFM reversible electric fan (5.3 Amp current draw)
• Anodised aluminium shroud/bracket
• Can be mounted vertically or horizontally
• 250 PSI working pressure
• Includes 74°C in-line thermostat for fan activation

Specifications:

• Inlet size: -06AN
• Fan size: 10″
• CFM: 650
• Amp draw: 5.3 A
• Width: 15-3/4″
• Height: 11-1/2″
• Depth: 5″
• Mounting: 14-3/4″ x 5-1/4″
• Hose size: 3/8″
• Hose length: 10′
