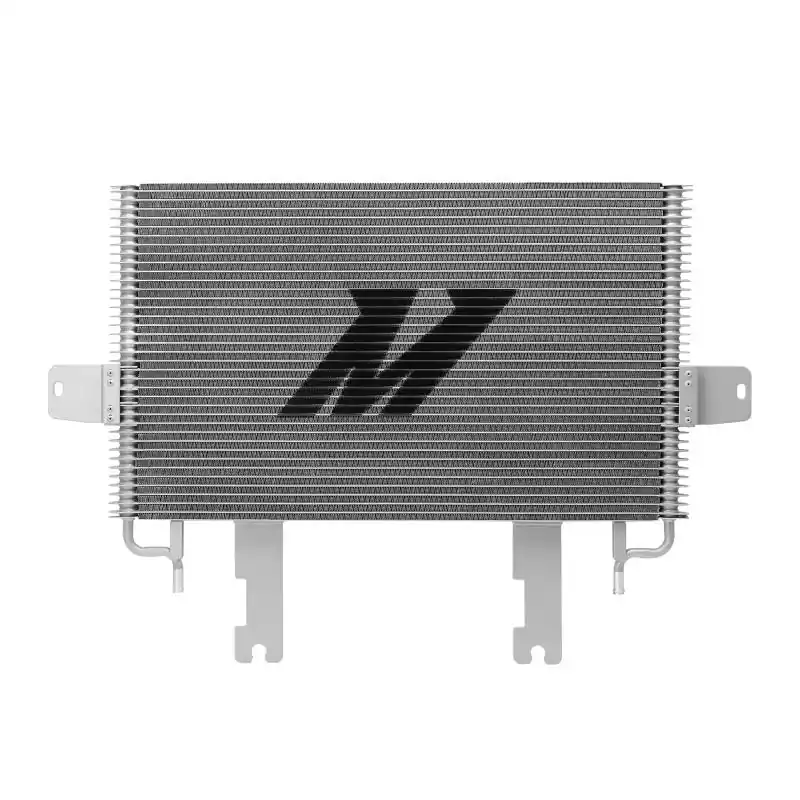

Modern Mishimoto Transmission Cooler (Ford 6.0L Powerstroke 2003-2007)

Description

Heavy loads are no match for a 2003–2007 6.0L Powerstroke equipped with the Mishimoto 6.0 transmission cooler. Complement your cooling system with the latest addition to Mishimoto’s 6.0 Powerstroke performance parts, the all-new 6.0 transmission cooler. The stock 6.0 Powerstroke transmission cooler does an ample job of keeping temperatures down, but as the loads increase, so do transmission temps. The 37-row Mishimoto stacked plate cooler provides a larger surface area over both of the stock coolers. Core volume is increased by a whopping 21%, and fluid capacity is increased by 1/3 qt. With the Mishimoto 6.0 transmission cooler, high transmission fluid temperatures will be the least of your worries. The increased size of this 6.0L transmission cooler provides a proven 10+°F drop in transmission fluid temperature! No modifications are necessary for installation, and, just like all Mishimoto 6.0 Powerstroke parts, this cooler comes with the Mishimoto Lifetime Warranty.

Features:

• Direct fit for the 2003–2007 Ford 6.0L Powerstroke
• Proven +10°F (+5.6°C) drop in transmission fluid temperature with no additional fluid pressure drop
• No modification necessary for installation, functions with all stock equipment
• 37-row stacked plate fluid cooler provides larger surface area over even the largest stock 31-row transmission cooler
• Transmisson cooler core has a 21% increase in core volume compared to the factory 31-row transmission cooler
• Increases transmission fluid capacity by 1/3 qt
• Mishimoto Lifetime Warranty

Note:

• Will not work with vehicles that came equipped with a high mounted power steering cooler. These vehicles will need to relocate the power steering cooler to the lower mounting location.

Tech Specs:

• Material: 6061 Aluminum
• Core Height: 16.13″
• Rows: 37
• Cooler Construction: Stacked-plate
• Core Thickness: 1.25″ (32mm)
• Core Length: 25.25″
• Tank Wall Thickness: .08″ (2mm)
• Temp Difference: 10°F (+5.6°C) drop in transmission fluid temperature
• Overall Height: 23.5″
• Overall Length: 34″
• Overall Width: 1.34″
• Core Size: 25.25″ x 16.13″ x 1.25″ (642mm x 410mm x 32mm)
• Inlet: .5″ (13mm)
• Outlet: .5″ (13mm)

Also Fits:

• 2003–2007 Ford F-250 w/ 6.0L Powerstroke
• 2003–2007 Ford F-350 w/ 6.0L Powerstroke
• 2003–2007 Ford F-450 w/ 6.0L Powerstroke
• Also fits 1999–2003 Ford Superduty trucks with the 7.3 engine, however the transmission cooler lines must be changed to ½” OD prior to installation.

Purchase Includes:

• (1) Mishimoto Stacked Plate Transmission Cooler
• Mounting Hardware
• Mishimoto Lifetime Warranty
